Walking Excavators
Sophisticated high-tech chassis for all-terrain excavation
Walking Excavators
The walking excavators' special features are based on a sophisticated high-tech chassis and the patented boom: various hydraulic cylinders enable the all-rounder to adapt its wheels and supports to any terrain. For this in some countries the Menzi muck is also called spider excavator.
A walking excavator or popularly spider excavator is a special type of all-terrain excavator. Like the regular excavator it consists of a boom, stick, bucket and cab on a rotating platform known as the "house".
Fixed tilting edges on Menzi muck tracked excavators can be adjusted depending on the task ahead thanks to the adjustable wheel and claw supports. As a result, it produces lifting and ripping forces beyond those of conventional excavators. A Menzi muck weighing 9.5 tons produces an output similar to that of a 20 ton tracked excavator.
Product Line

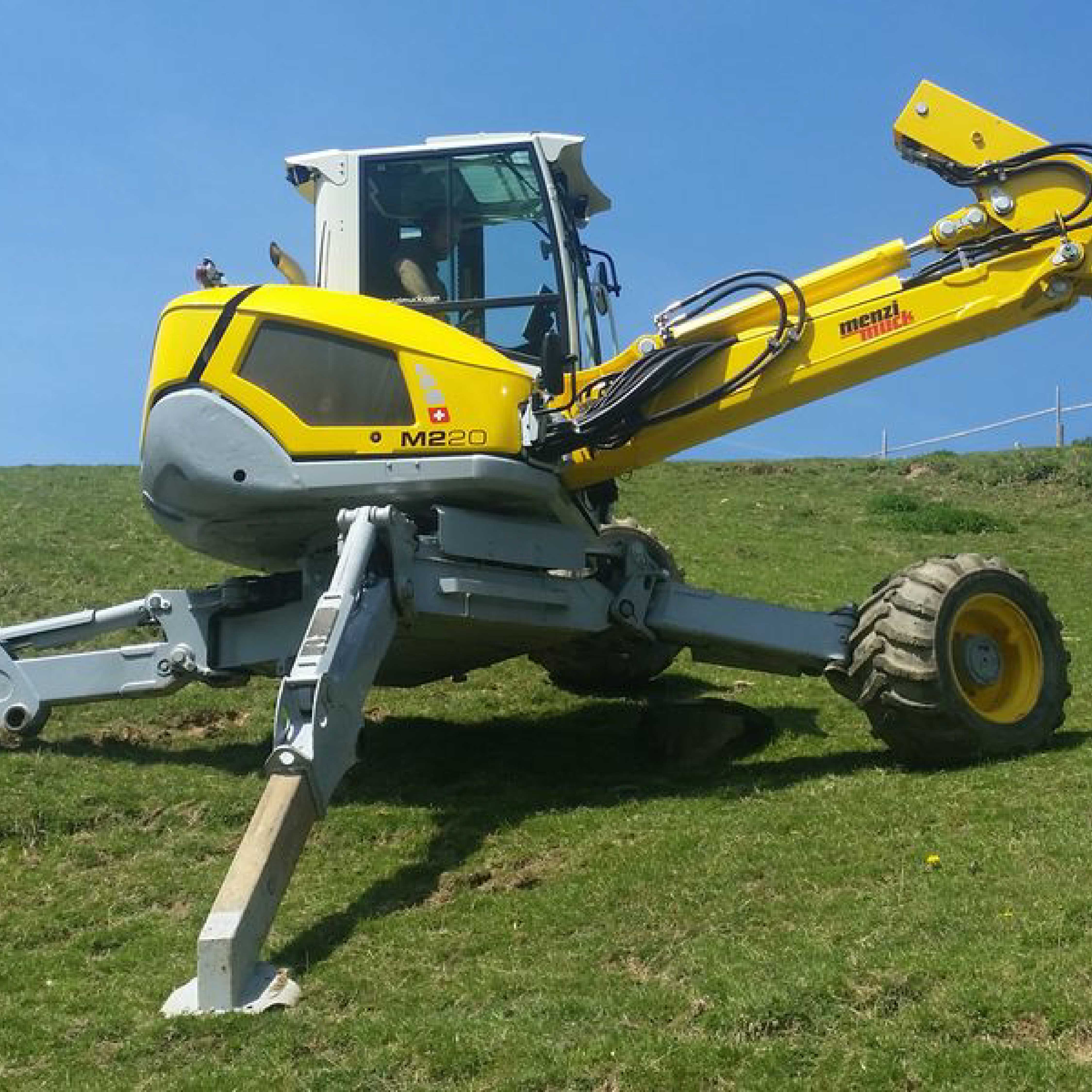

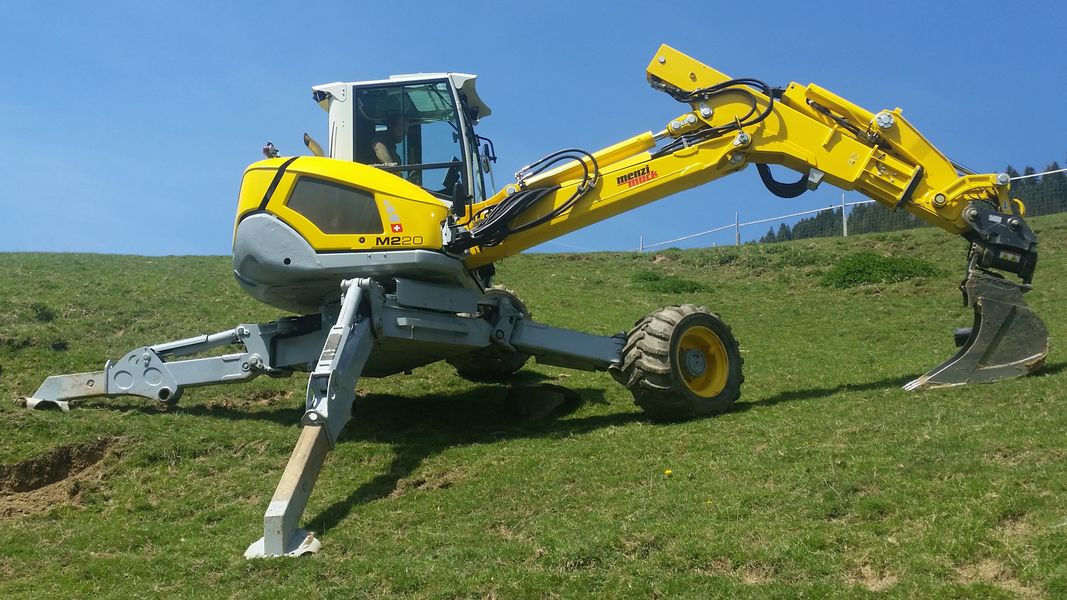

Menzi Muck M220
Compact and efficient for versatile applications.

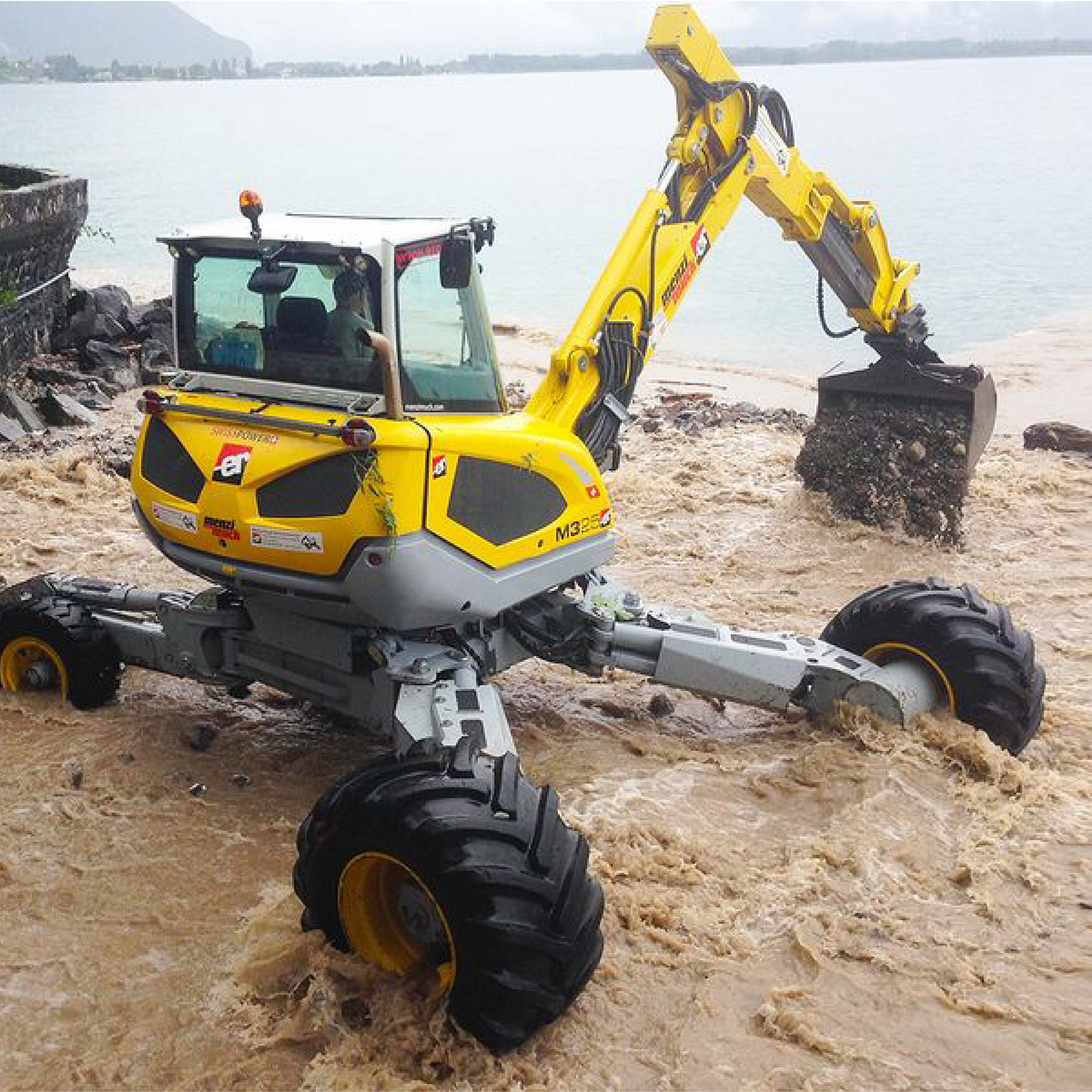

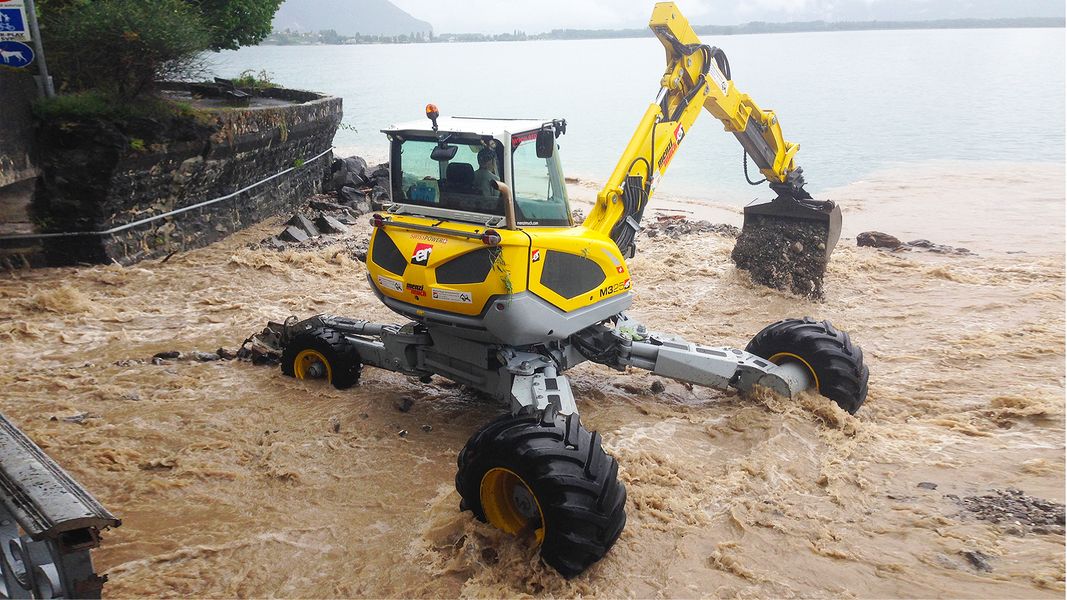

Menzi Muck M320/325
Mid-range Power for demanding terrain.

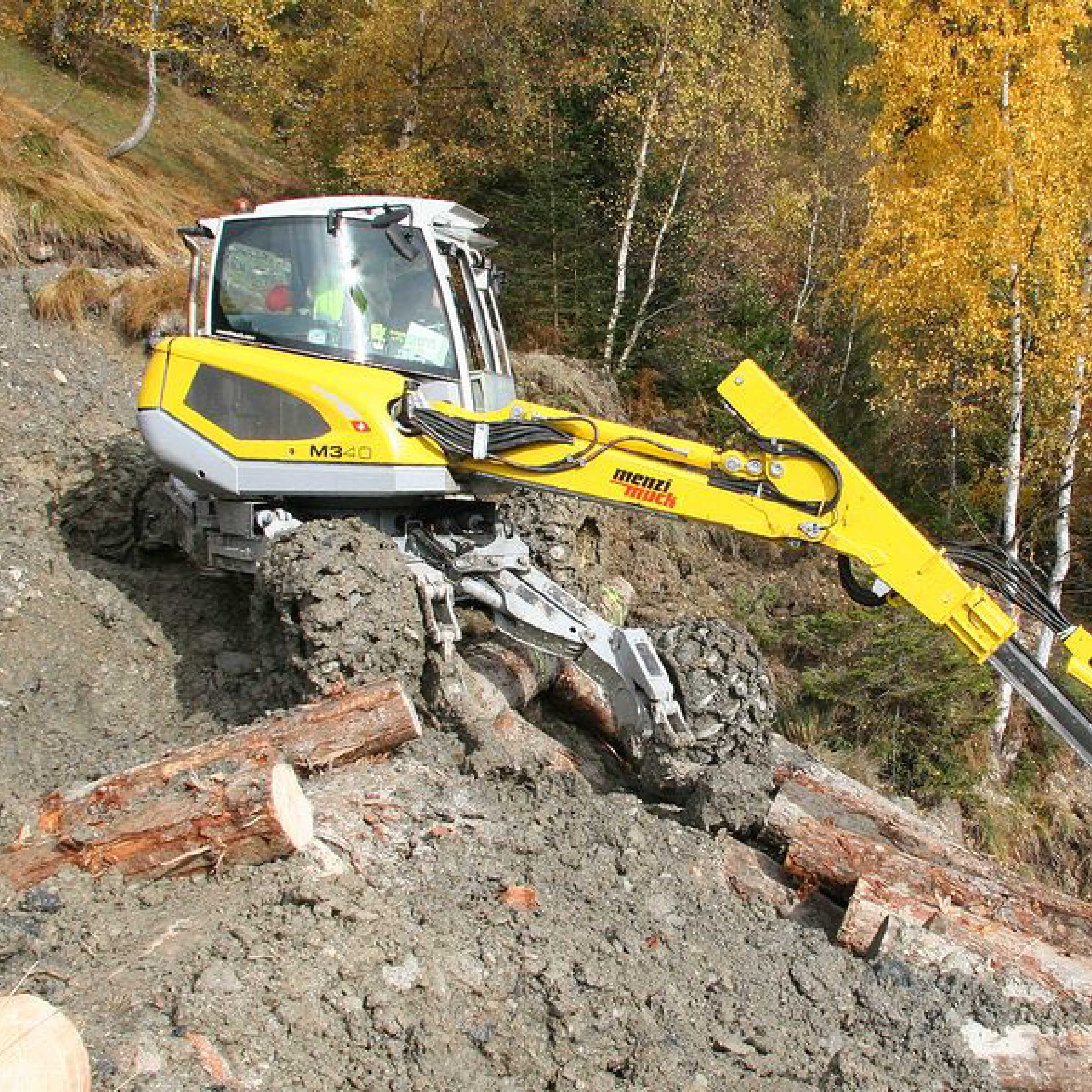

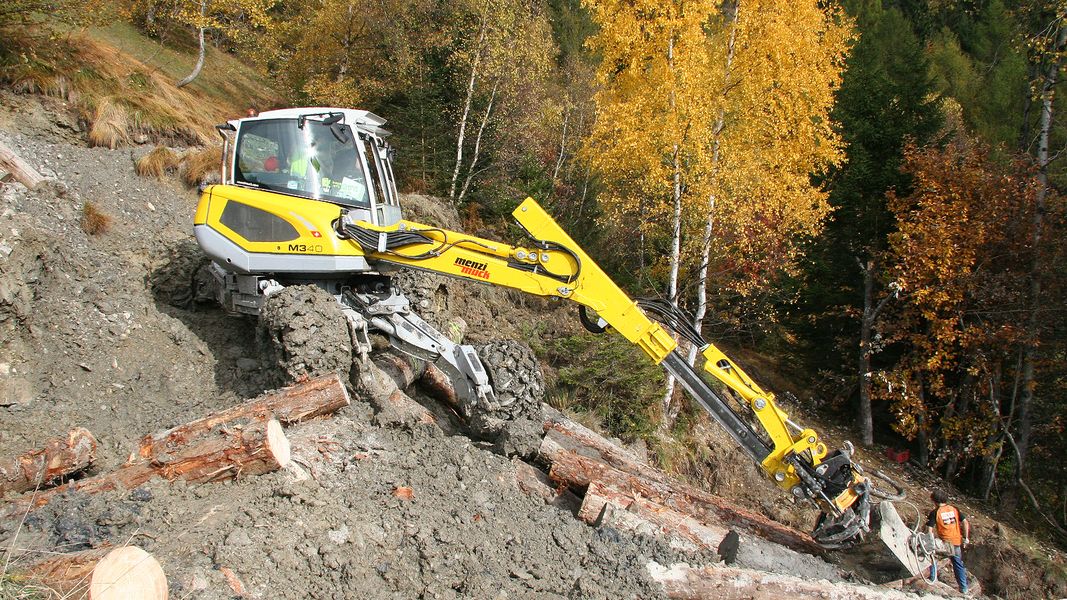

Menzi Muck M340
Enhanced capacity for heavy-duty work.

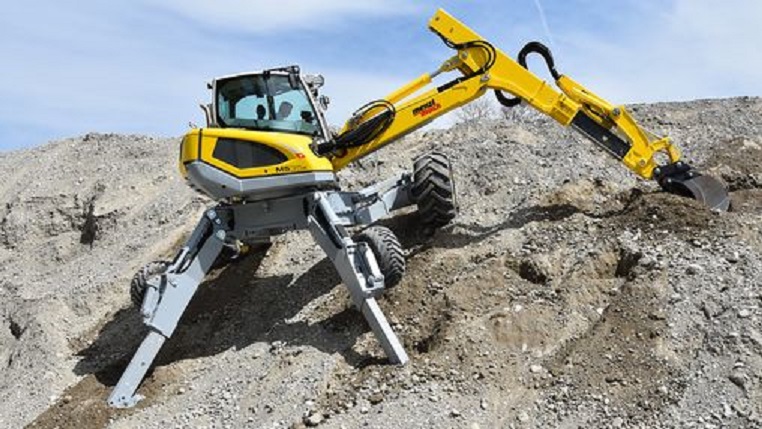

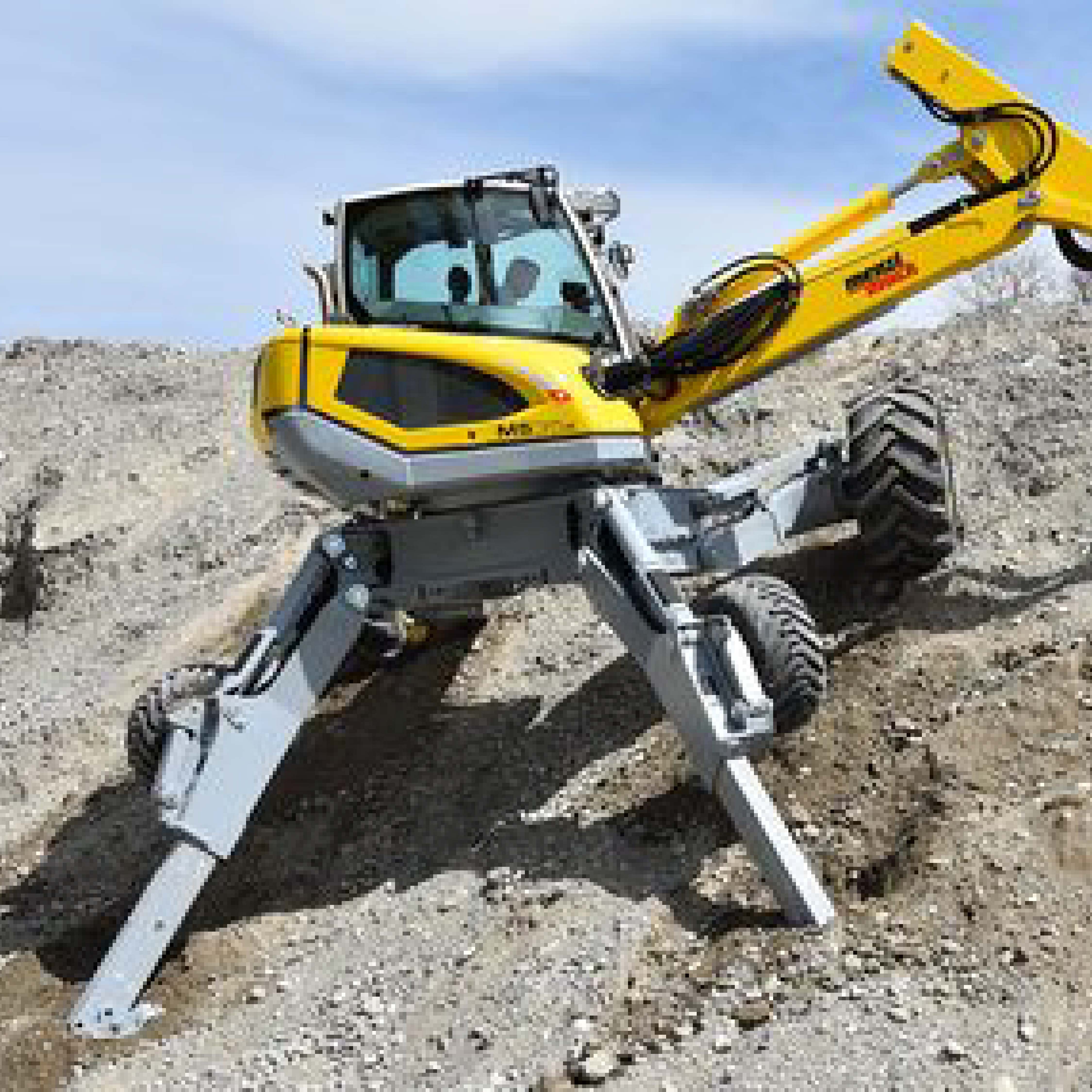

Menzi Muck M535x
Advanced features for extreme conditions.

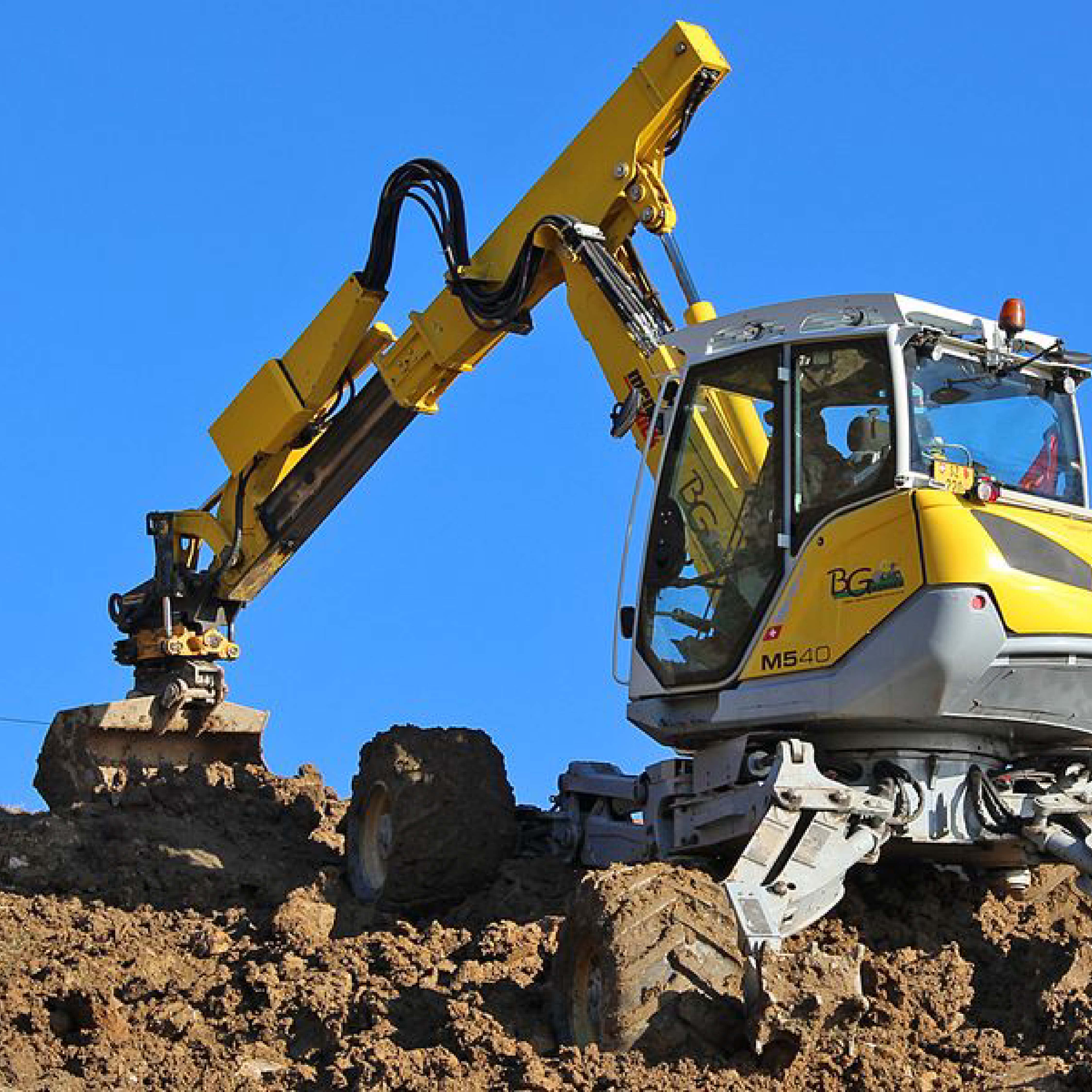

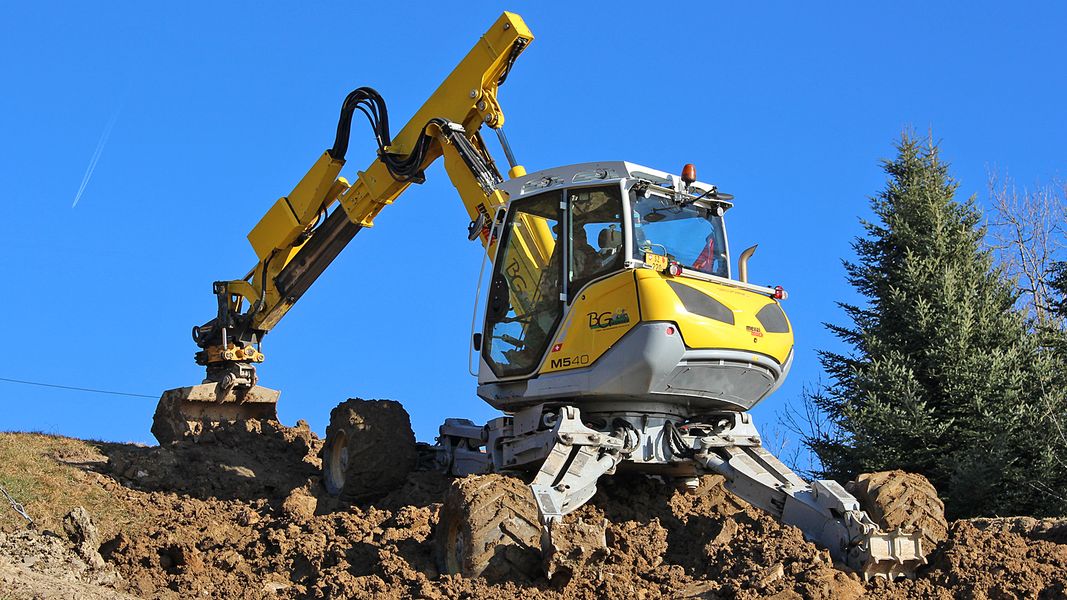

Menzi Muck M540
Versatile solution for various terrains.

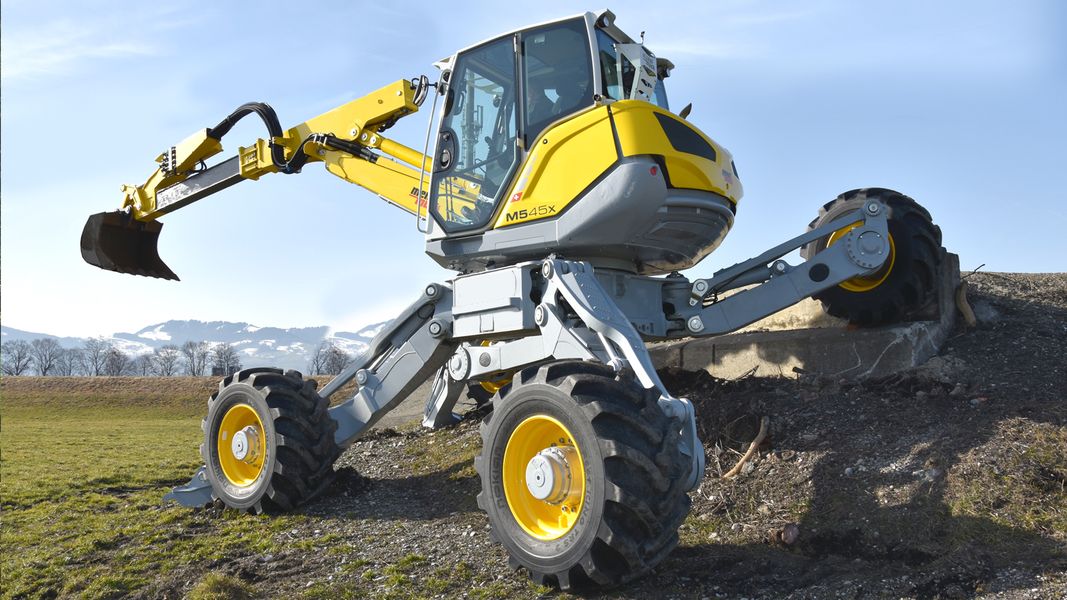

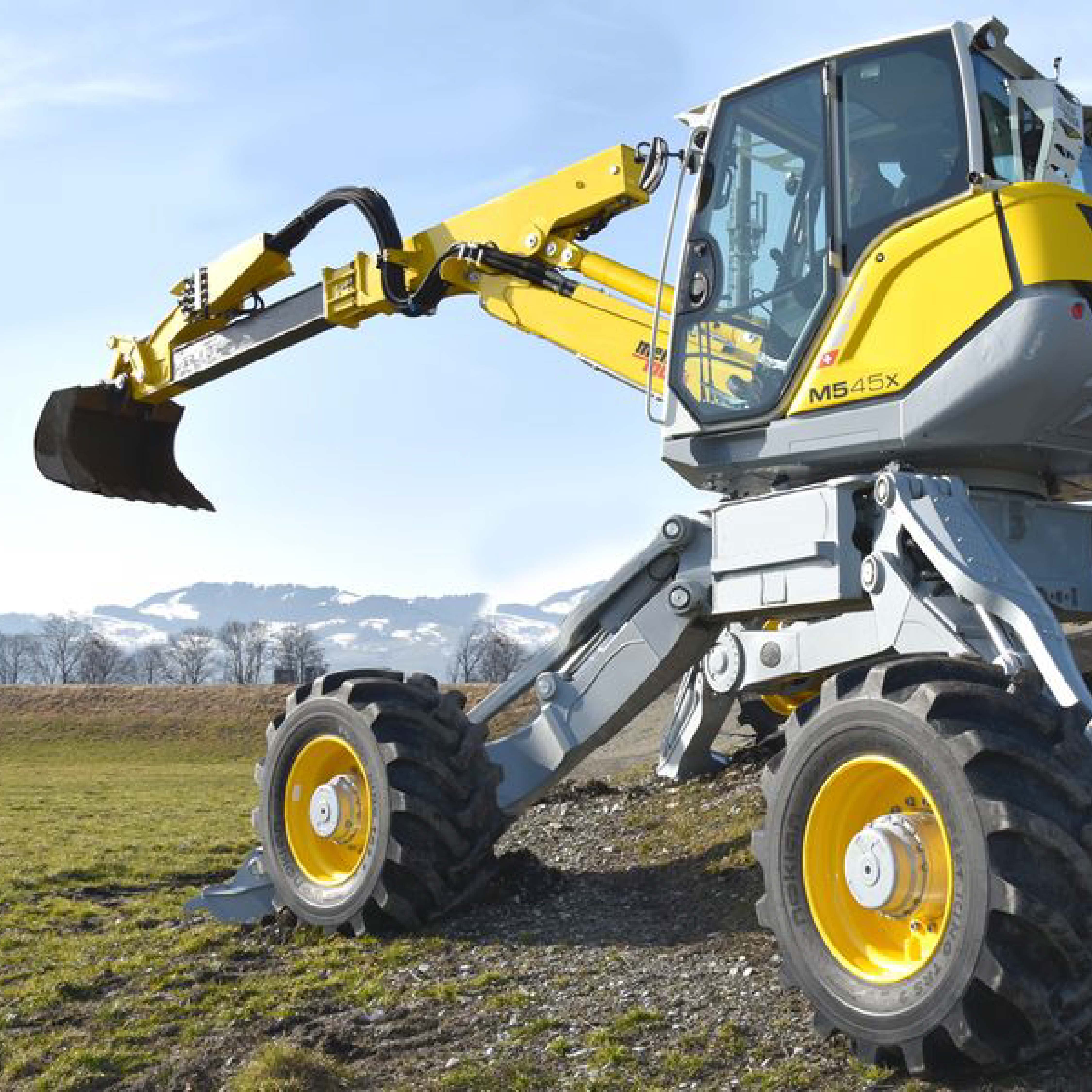

Menzi Muck M545x
Maximum power and performance.
Series comparison

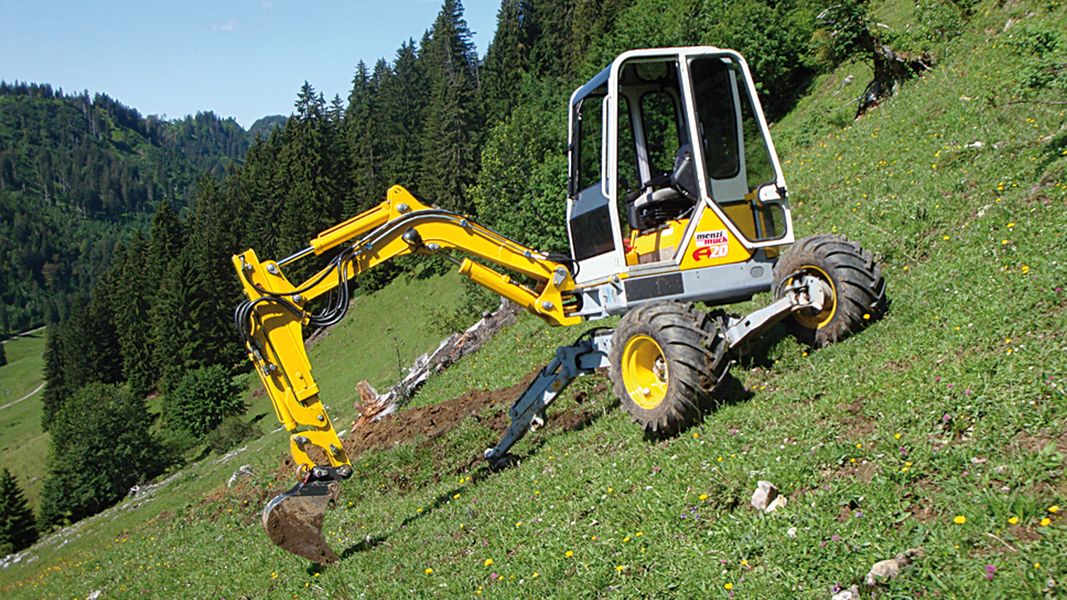

| Parameter | M2 (M220) | M3 (M320–M340) | M5 (M520–M545) | M5x (M525x–M545x) | A20 / A40 |
|---|---|---|---|---|---|
| Weight without accessories | 7 000 kg | 9 400 – 10 700 kg | 10 700 – 12 300 kg | From 13 500 kg (M545x) | 2 000 / 4 500 kg |
| Engine output | Deutz 55 kW, Stage IIIB / Tier 4 | Deutz 100 kW, EU Stage V | 115 kW | 115 kW (ISO 3046) | 15.8 / 49 kW |
| Max. excavation depth | 4 790 mm | 4 910 – 5 000 mm | 5 120 – 5 470 mm | Not published in the datasheet | 2 600 / 3 370 mm |
| Max. excavation height | 8 400 mm | 8 830 – 9 450 mm | 9 870 – 9 910 mm (M520/M525) | Not published in the datasheet | 3 900 / 5 850 mm |
| Lifting capacity @ 4.5 m | 3 100 kg | 3 800 kg | 6 000 kg | 6 400 kg | Not published in the datasheet |
| Transport width | 1 810 mm | 2 220 – 2 360 mm | 2 230 – 2 370 mm | Not published in the datasheet | 960 / 1 400 mm |
| Transport height | 2 550 mm | 2 550 mm | 2 550 mm | Not published in the datasheet | 2 500 / 2 550 mm |
| Travel speed | 8 km/h | 10 – 12 km/h | 10 – 15 km/h | Up to 15 km/h | 2.6 / 4.6 km/h |
Source: manufacturer datasheets listed above. — = not published by the manufacturer. Specifications may vary by configuration and are subject to change.
