Meclift Attachments

Versatile solutions for efficient material handling

01Meclift

Attachments

Wherever efficient material handling is needed, Meclift is committed to assist you.

02

Related Accessories

Explore our comprehensive range of specialized attachments

Bogey Rollers
Featured

Bogey Rollers

Advanced attachment for increased reach capacity in containers and trailers

Paper Clamps — photo 1 of 2
Precision

Paper Clamps

Efficient and safe solution for paper roll handling tasks

Loading Box — photo 1 of 2
Patented

Loading Box

Patented solution for aluminum extrusion billet handling

Pallet Fork
Aviation

Air Cargo Pallet Forks

Specialized forks for air cargo pallet handling

Lifting Beam — photo 1 of 2
Heavy Duty

Lifting Beam

Robust lifting solutions for heavy materials

Double Fork
Dual Power

Double Fork

Double the efficiency with dual fork attachment

C-Hook — photo 1 of 2
Industrial

C-Hook

Secure handling for coils and cylindrical materials

Coil Clamp — photo 1 of 2
Safe Grip

Coil Clamp

Precision clamping for metal coils and rolls

Coil Ram — photo 1 of 2
Power

Coil Ram

Heavy-duty ram for secure coil handling

03Technical data

Attachment register

MECLIFT / ATTACHMENTS
Attachment register
ParameterRatingCompatible trucks
C-hook30 000 kg · 360° rotation · 64° tiltML4212RC, ML4218RC
Coil ramCoils up to the truck capacity (e.g. 16 000 kg on ML1612R)Meclift variable reach trucks
Coil clampsCoils up to the truck capacity · opening 618 – 2 198 mm · 1 115 kg with standMeclift variable reach trucks
Double fork8 780 kg per fork @ 600 mm · 4 euro pallets per liftMeclift variable reach trucks
Pallet fork (air cargo)16 000 kg @ 1 200 mmML1612R
Loading boxBundles up to 7 000 mm and 11 300 kgAll Meclift variable reach trucks
Lifting beam5.7 m beam · long and wide loadsMeclift variable reach trucks
Datasheets6 files
01Attachment: coil clampsPDF2.4 MB 02Attachment: coil ramPDF2.7 MB 03Attachment: double forkPDF1.5 MB 04Attachment: loading boxPDF1.2 MB 05Attachment: pallet forkPDF2.1 MB 06Meclift in the metal industry - brochurePDF11.0 MB

Source: manufacturer datasheets listed above. — = not published by the manufacturer. Specifications may vary by configuration and are subject to change.

04Customize your equipment

Explore Options

Discover our range of attachments and customization possibilities.

RFQ / Response by email
* Required
Meclift Attachment 01 of 09

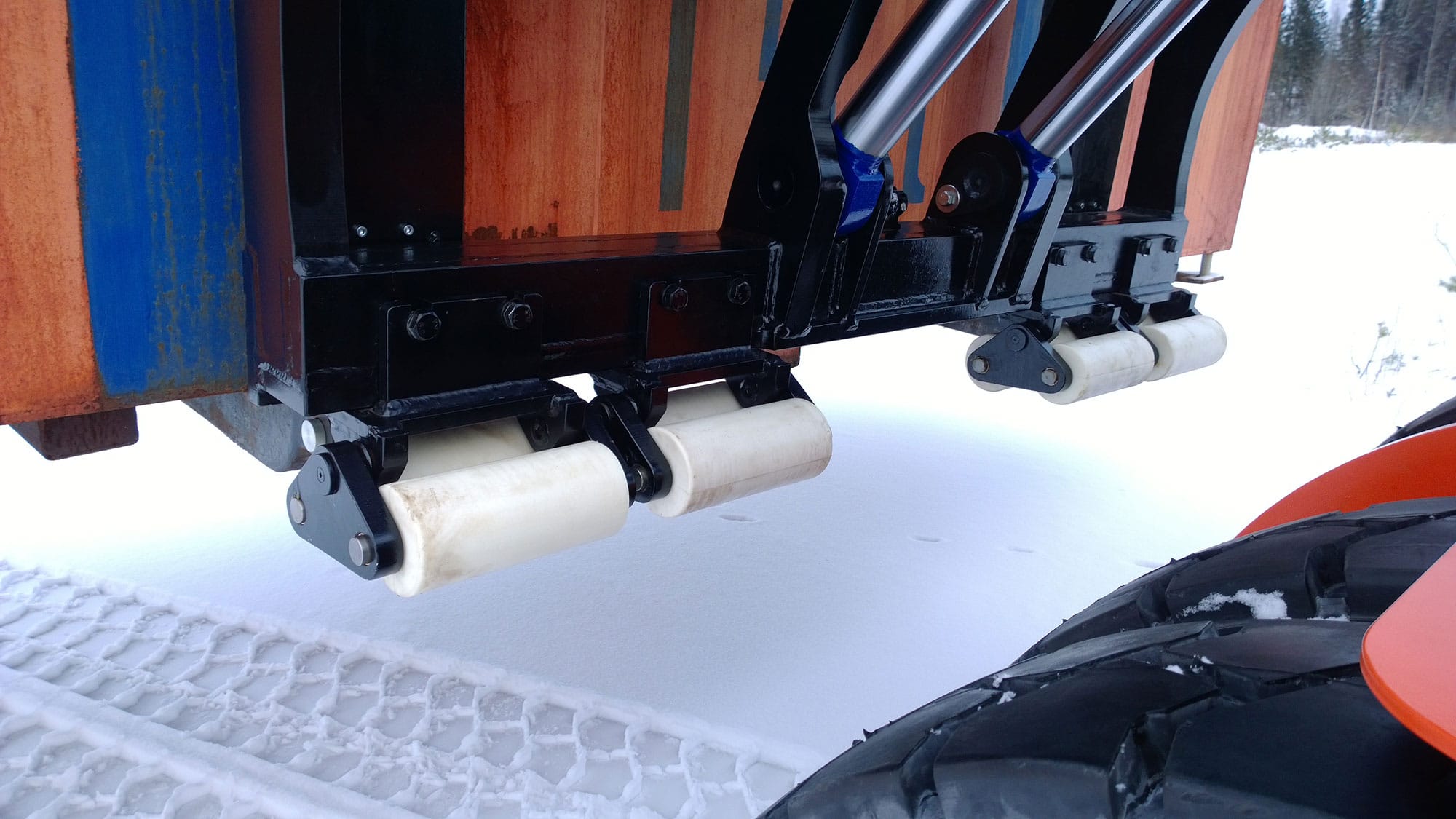

Bogey Rollers
Fig. 01Bogey Rollers
Reach extension

Bogey Rollers

Meclift™ bogey rollers are an attachment to the Meclift™ variable reach truck that is designed to increase the trucks' ability to reach out heavy loads into the containers and trailers.

Bogey rollers are placed under the lifting carriage of reach truck. Bolt assembled Bogey rollers are quick and easy to connect. It can be installed afterward.

Key features

  1. 01Increased reach capacity for containers and trailers
  2. 02Quick and easy bolt assembly connection
  3. 03Can be installed afterward

Fits

ML1812R 18 tML4212RC 42 tML4218RC 42 t @ 1.8 m
Datasheet on request Request a quote
Meclift Attachment 02 of 09
Paper Clamps
Fig. 02Paper Clamps
Paper roll handling

Paper Clamps

The strength of a Paper Clamps attachment and the excellent reaching ability of Meclift™ Variable Reach Trucks provide an efficient and safe solution for paper rolls handling tasks.

Utilizing the paper clamps, any Meclift™ Variable Reach Truck can handle paper rolls within its lifting capacity.

Key features

  1. 01Efficient and safe paper rolls handling
  2. 02Compatible with all Meclift™ Variable Reach Trucks
  3. 03Handles rolls within lifting capacity

Fits

All Meclift variable reach trucks
Datasheet on request Request a quote
Meclift Attachment 03 of 09
Loading Box
Fig. 03Loading Box
Worldwide patented

Loading Box

Meclift™ Loading Box enables handling bundles of aluminum extrusion billets effortlessly and safely. It is designed and also guaranteed to do this without causing any scratches or bending of the goods.

7m
Billet bundle length
11 300kg
Bundle weight
40ft
Container, loaded mid-length

A wide variety of dimensions available ensures that each customer can choose a solution that best fits their work environment.

The Meclift ML4212RC Variable Reach Truck equipped with the Loading Box is the only solution in the world that can load 7 m bundles of aluminum extrusion billets 11,300 kg of weight in the middle of a 40-ft container.

The loading box is a smart innovation, which has got several worldwide patents.

Key features

  1. 01Scratch-free handling guaranteed
  2. 02Wide variety of customizable dimensions
  3. 03Several worldwide patents
  4. 04Unique 40-ft container loading capability

Fits

ML4212RC 42 t
DatasheetPDF · 1.2 MB Request a quote
Meclift Attachment 04 of 09
Air Cargo Pallet Forks
Fig. 04Air Cargo Pallet Forks
Airport cargo

Air Cargo Pallet Forks

The Meclift™ Air Cargo Pallet Forks (ACPF) are designed for cargo handling at airports, where keeping up with timetables is essential. It enables to load and unload air cargo efficiently and smoothly without the hassle and unnecessary, time-consuming work phases.

ACPF is a seamless extension to a roller conveyor in loading and unloading. Its agility and speed in cargo handling are based on the ability to lift pallets off the ground and to lay them directly on the roll conveyor by rolling. Receiving pallets from the conveyor is just as swift and effortless.

In addition to increased savings in time, the elimination of unnecessary work phases improves safety at work. Worldwide patents protect ACPF.

Key features

  1. 01Efficient and smooth air cargo handling
  2. 02Seamless roller conveyor integration
  3. 03Time savings and improved safety
  4. 04Worldwide patent protection
DatasheetPDF · 2.1 MB Request a quote
Meclift Attachment 05 of 09
Lifting Beam
Fig. 05Lifting Beam
Watch it workingDemonstration video · YouTube
Long and wide loads

Lifting Beam

Lifting beams are effective devices for lifting loads with a spreader beam system. This special equipment can be securely attached to Meclift™ forklifts without special components.

5.7m
Beam length

With a 5.7 meter beam, Meclift™ Variable Reach Trucks can be equipped with an efficient tool for lifting long and wide loads.

Key features

  1. 01Compatible with Meclift™ forklifts
  2. 025.7 meter beam capacity
  3. 03Ideal for long and wide loads
  4. 04Secure attachment without special components

Fits

All Meclift variable reach trucks
Datasheet on request Request a quote
Meclift Attachment 06 of 09
Double Fork System
Fig. 06Double Fork System
Watch it workingDemonstration video · YouTube
Two loads per lift

Double Fork System

Meclift™ Variable Reach Trucks equipped with Double Forks System considerably improve the efficiency in cargo handling.

4
Euro pallets per lift
2
Lifts to load a 20 ft container

As an easily mountable specialized attachment, it provides a multitude of benefits when loading and unloading containers and trailers. You can handle, for example, a total of four euro pallets or a similar load on one lift.

For example, a 20 ft container can be fully loaded with only two lifts.

Key features

  1. 01Handle four euro pallets per lift
  2. 0220 ft container loaded in two lifts
  3. 03Quick attachment switching
  4. 04Full side shift feature utilization

Fits

All Meclift variable reach trucks
DatasheetPDF · 1.5 MB Request a quote
Meclift Attachment 07 of 09
C-Hook
Fig. 07C-Hook
Watch it workingDemonstration video · YouTube
Steel industry

C-Hook

Take total control over coils. Meclift™ C-hook is our latest innovation for the steel industry. It is equipped with hydraulic 360° rotation and 64° tilting. The lifting capacity is 30,000 kg.

30 000kg
Lifting capacity
360°
Hydraulic rotation
64°
Tilt

With 360° rotation, the operator can position the coil accurately and safely, for example, into a truck, open wagon, or inside a vessel.

Moving coils from/to train, loading them in cargo bay are just a few examples where Meclift™ C-hook with ML4212RC/4218RC will excel in its work. It is evident that a new level of efficiency is reachable with the Meclift™ variable reach truck and C-hook.

Key features

  1. 01Hydraulic 360° rotation
  2. 0264° tilting capability
  3. 0330,000 kg lifting capacity
  4. 04Precise coil positioning

Fits

ML4212RC 42 tML4218RC 42 t @ 1.8 m
Datasheet on request Request a quote
Meclift Attachment 08 of 09

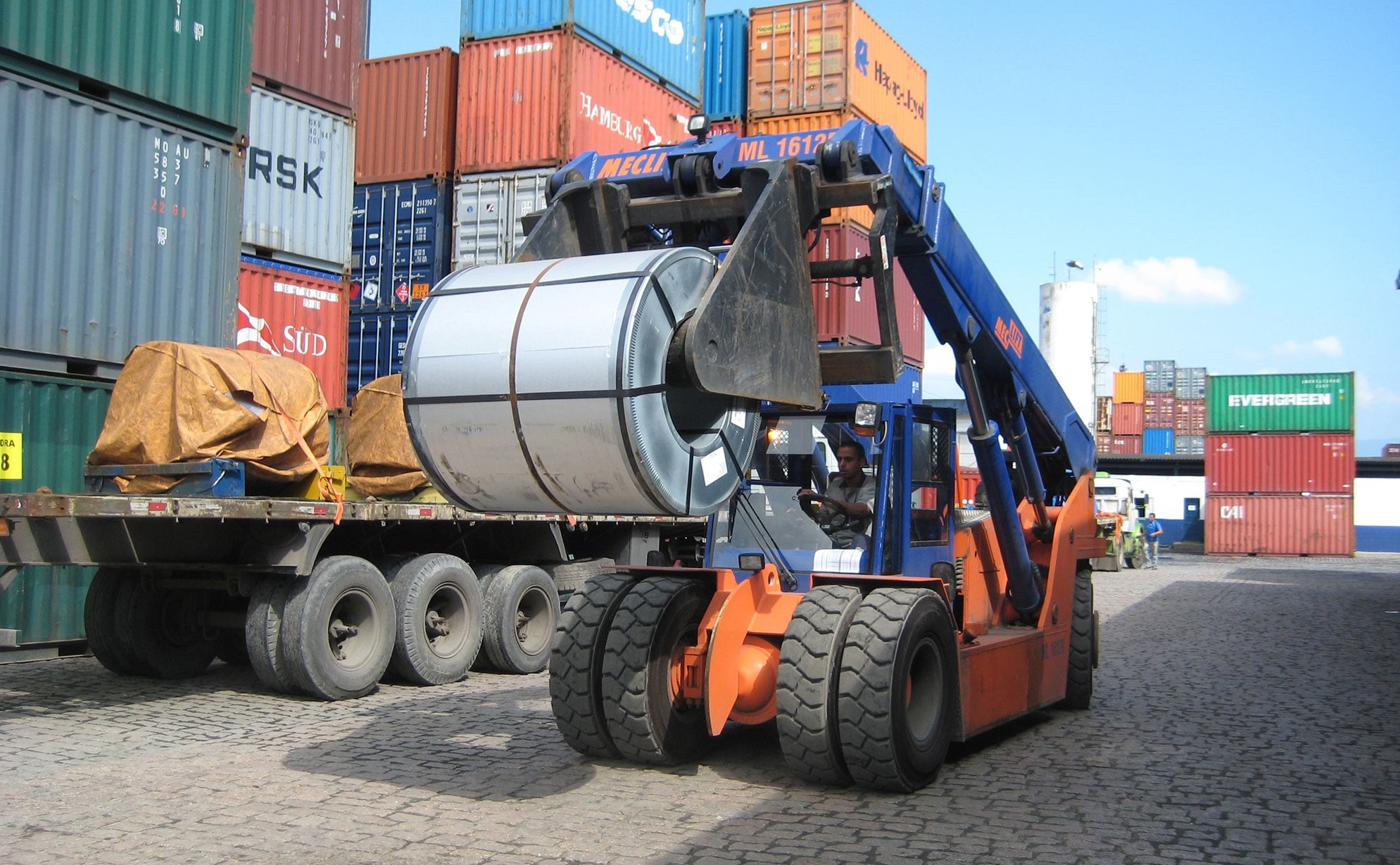

Coil Clamp
Fig. 08Coil Clamp
Watch it workingDemonstration video · YouTube
Coil handling

Coil Clamp

By combining the strength of a coil clamp attachment and the excellent reaching ability of Meclift™ Variable Reach Trucks, you get an efficient and safe solution for diverse tasks in cargo handling.

18 000kg
Coil weight on ML1812R

Utilizing coil clamps, any Meclift™ Variable Reach Truck can handle coils within its lifting capacity. ML1812R, for example, can handle coils up to 18,000 kg.

“Meclift helps to increase efficiency enormously. What took days, now takes hours.”

Key features

  1. 01Handles coils within lifting capacity
  2. 02ML1812R handles up to 18,000 kg
  3. 03Container and trailer loading capability
  4. 04Safe and efficient cargo handling

Fits

All Meclift variable reach trucks
DatasheetPDF · 2.4 MB Request a quote
Meclift Attachment 09 of 09
Coil Ram
Fig. 09Coil Ram
Watch it workingDemonstration video · YouTube
Steel coil handling

Coil Ram

The Meclift™ Variable Reach Truck with a Coil Ram attachment is a superior combination when handling steel coils. Utilizing a Coil Ram, any Meclift™ Variable Reach Truck can handle coils within its lifting capacity.

18 000kg
Coil weight on ML1812R

ML1812R, for example, can handle coils up to 18,000 kg.

Thanks to its compact size, loading a container from the back end by driving the load inside the container is effortless. By exploiting the reaching ability, it is also possible to load the container from the outside. The Meclift™ Coil Ram is also available for ML4218RC.

Key features

  1. 01ML1812R handles up to 18,000 kg
  2. 02Also available for ML4218RC
  3. 03Excellent reach capability
  4. 04Compact size for easy container loading

Fits

ML1812R 18 tML4218RC 42 t @ 1.8 m
DatasheetPDF · 2.7 MB Request a quote
