TerranzMecliftVariable reachML1812R
ML1812R
The only 18-ton telehandler that can operate inside containers.
Variable Reach Truck ML1812R

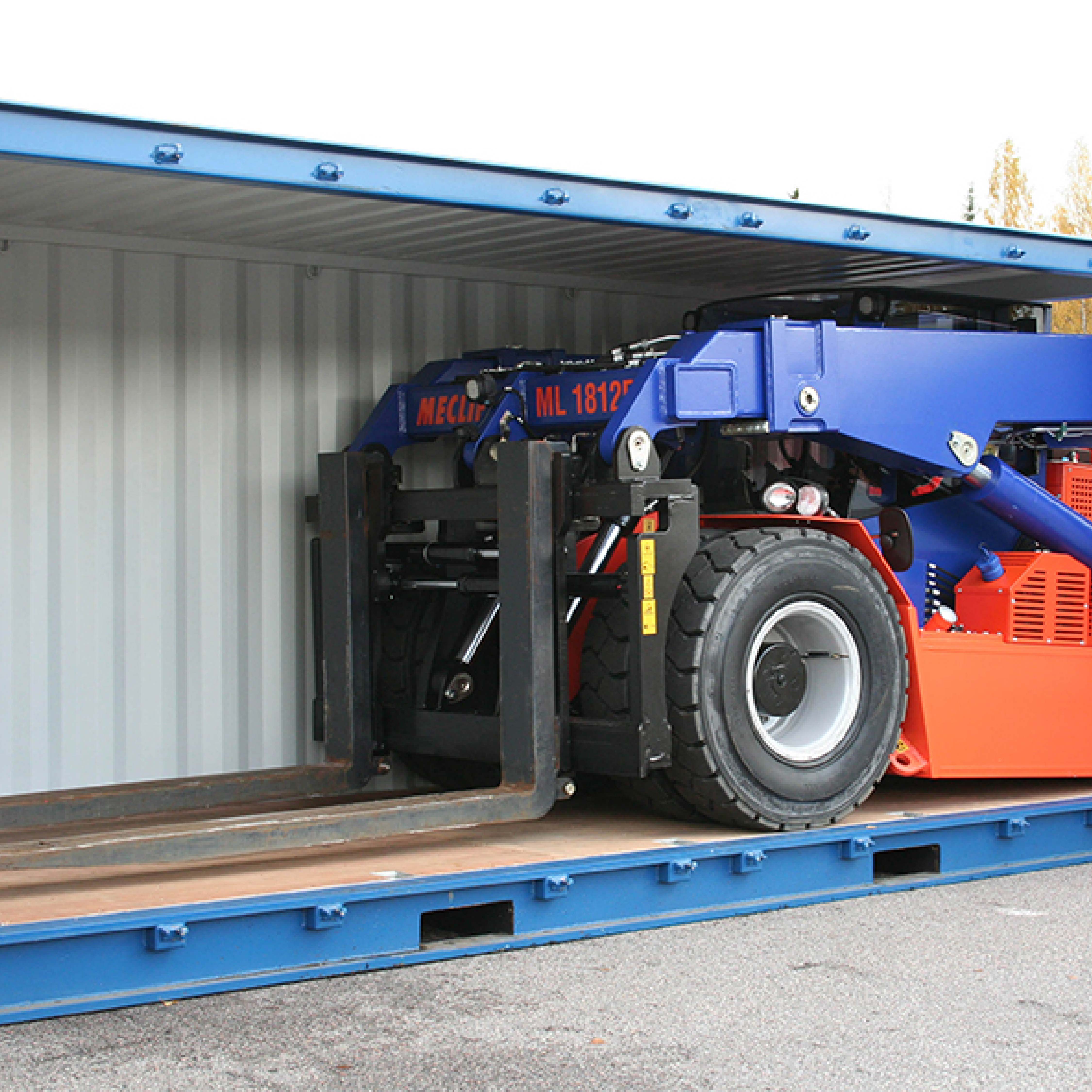

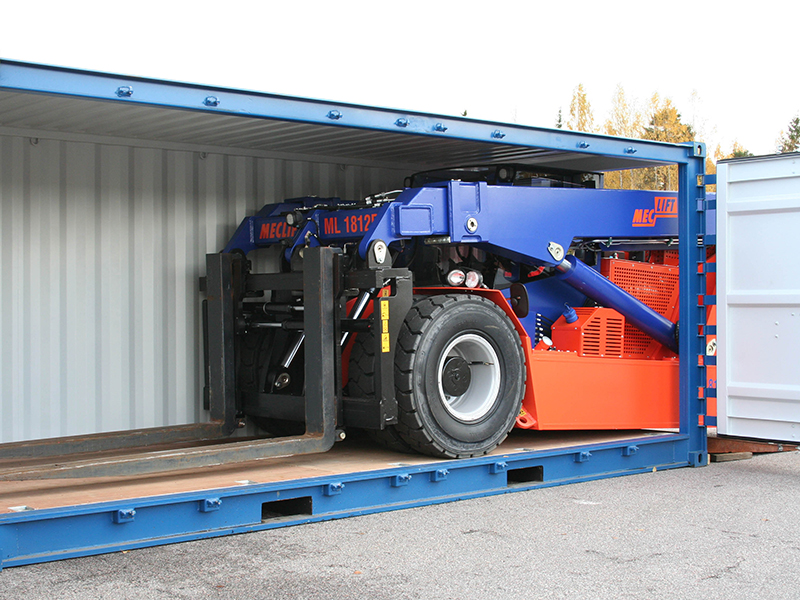

Meclift™ ML1812R is a unique multipurpose forklift truck. It is the only telehandler in the lifting capacity range of 18 tons, which can be operated inside containers. It moves swiftly in confined spaces, such as warehouses and cargo vessels. In addition to heavy cargo lifting, ML1812R is perfect for practically any other material handling needs. It is superior compared to conventional forklift trucks.

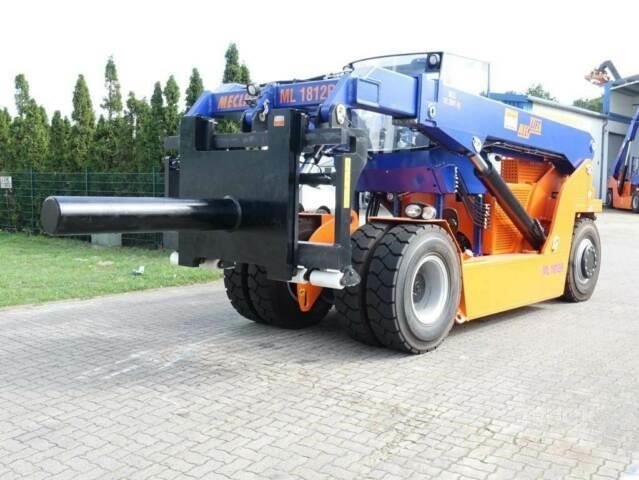

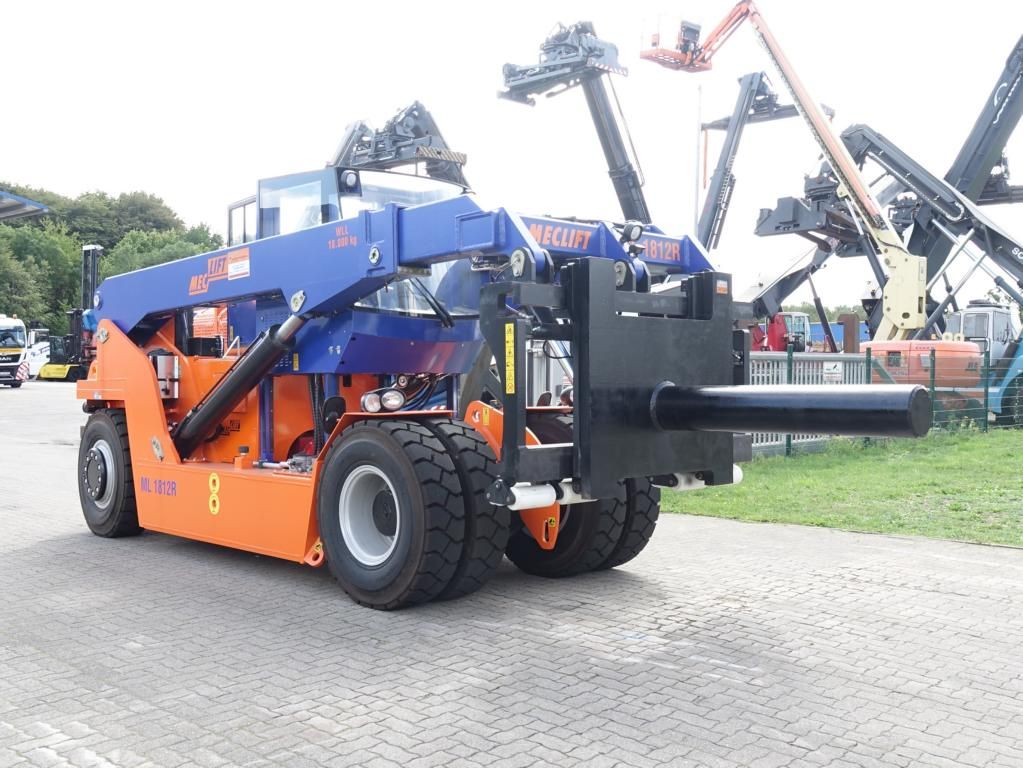

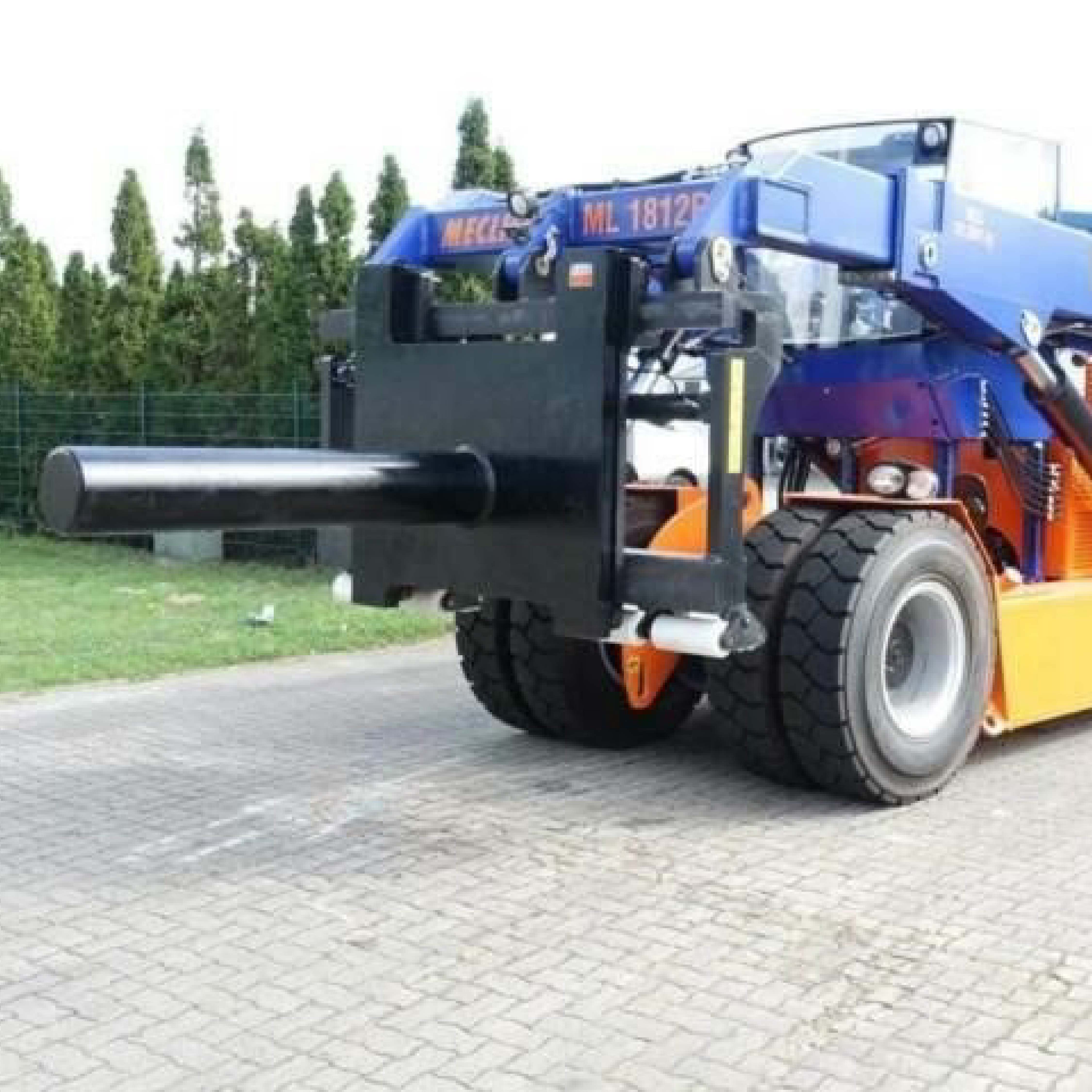

Different kinds of Meclift attachments increase opportunities for using one machine for multiple purposes. It lifts 20-feet containers from fork pockets and stacks them up to 3-high. A hydraulically movable cabin ensures excellent visibility even when handling bulky objects. ML1812R is an environmentally friendly solution.
Less work machinery on your yard means less fuel consumed. It also means more open space and better visibility, resulting in improved safety and less damage to your cargo. ML1812R is easy to transport in a 20-feet container or on a swap body vehicle. It is designed to operate reliably in demanding conditions. Supported by worldwide-known components and easily accessible spare parts, ML1812R is a secure choice.

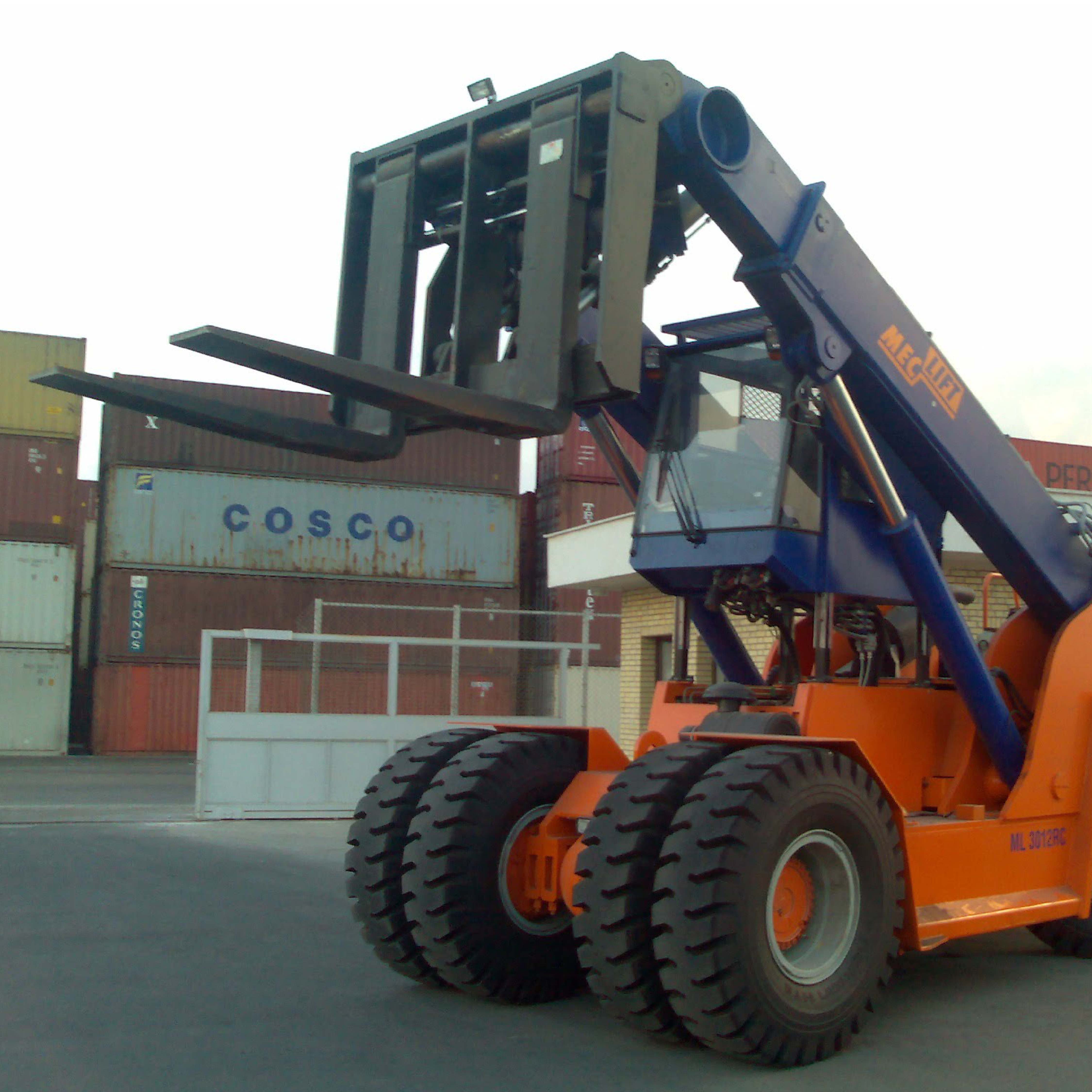

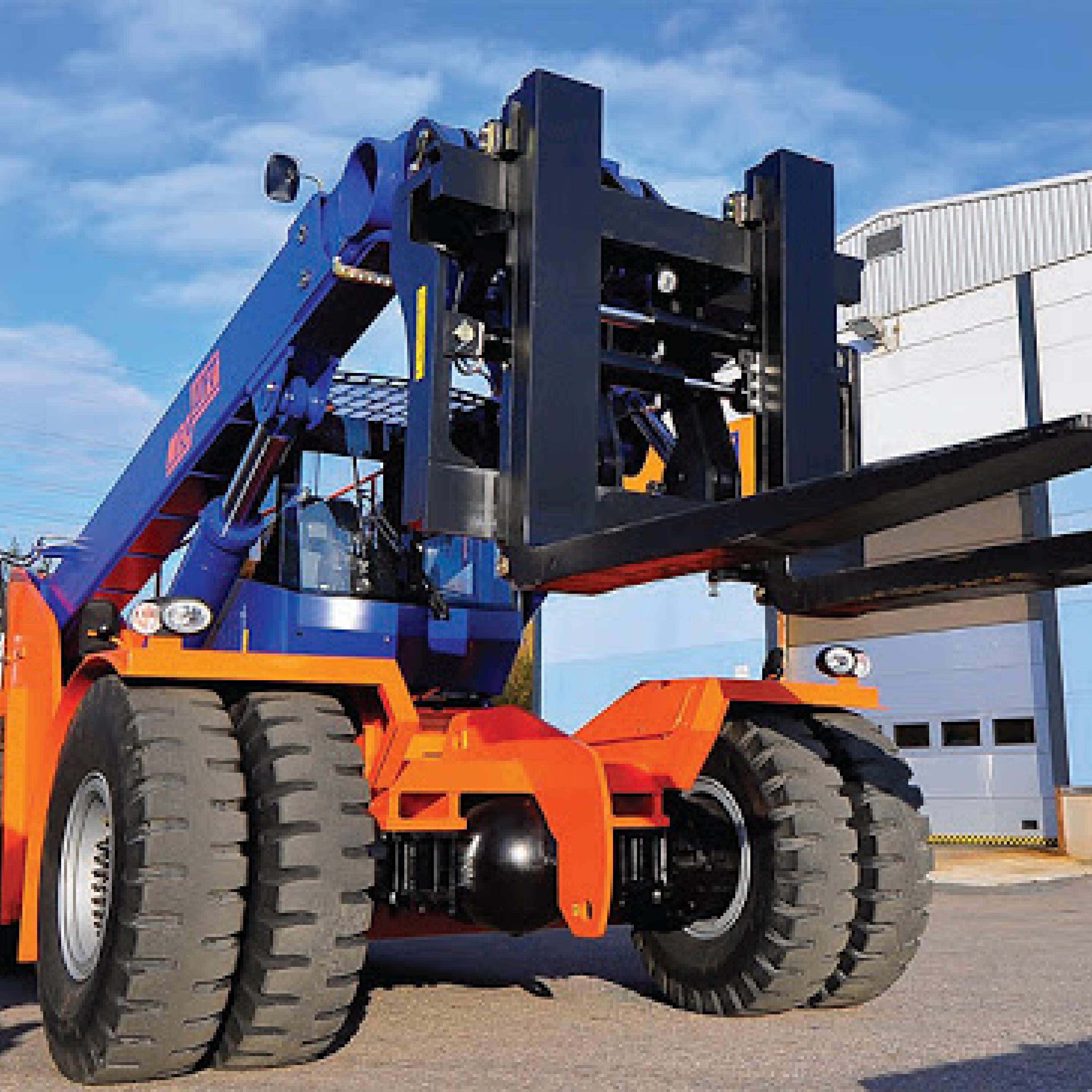

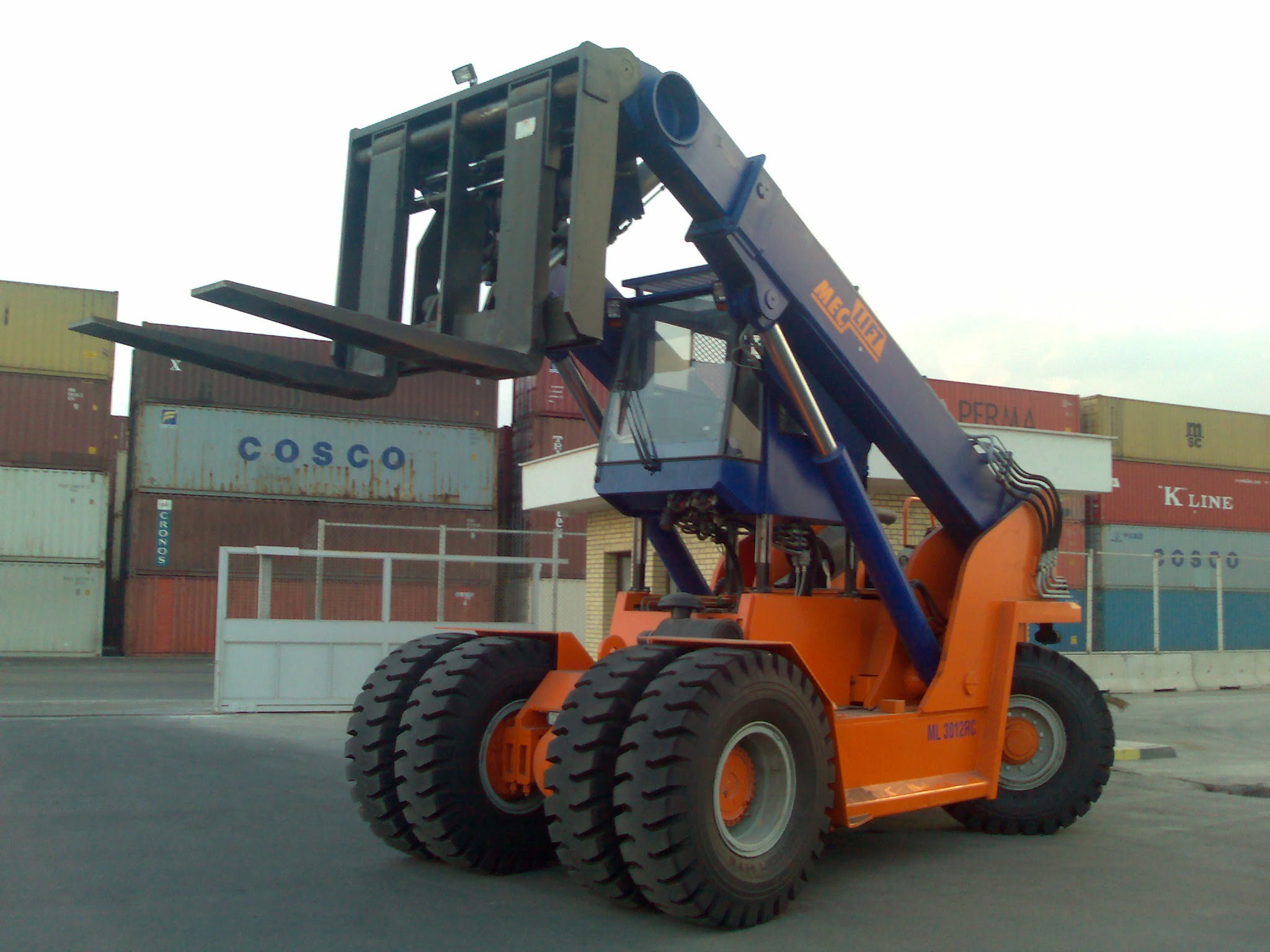

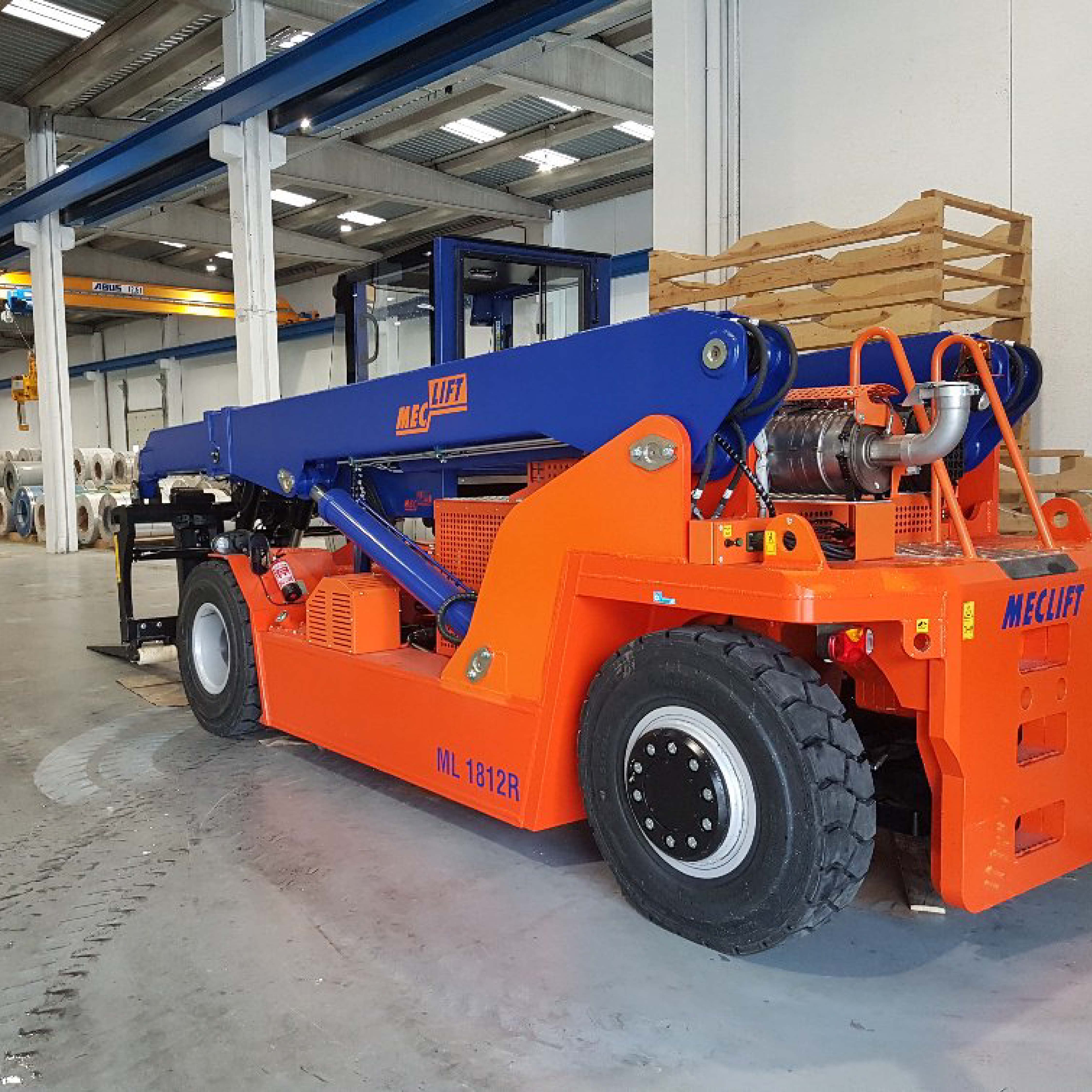

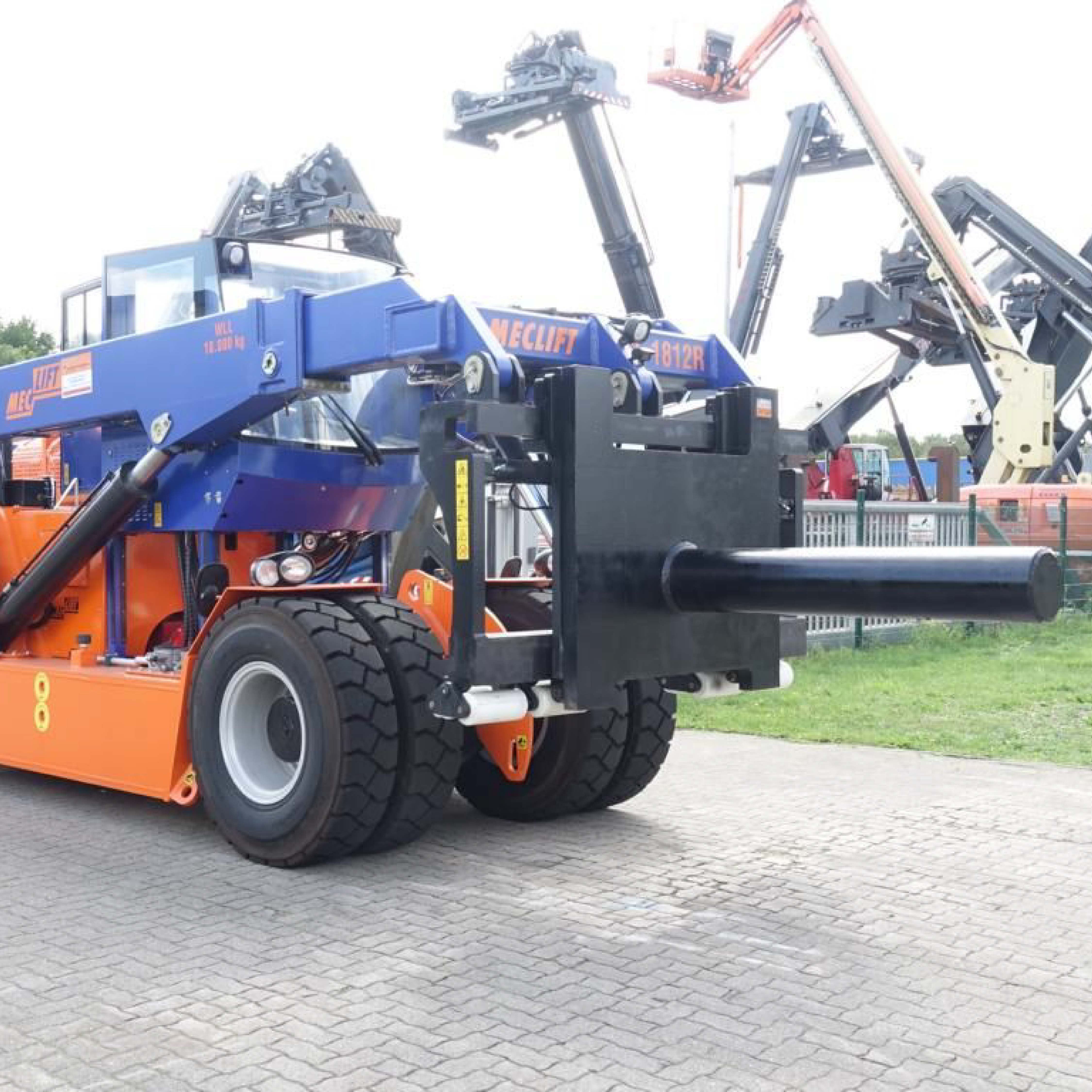

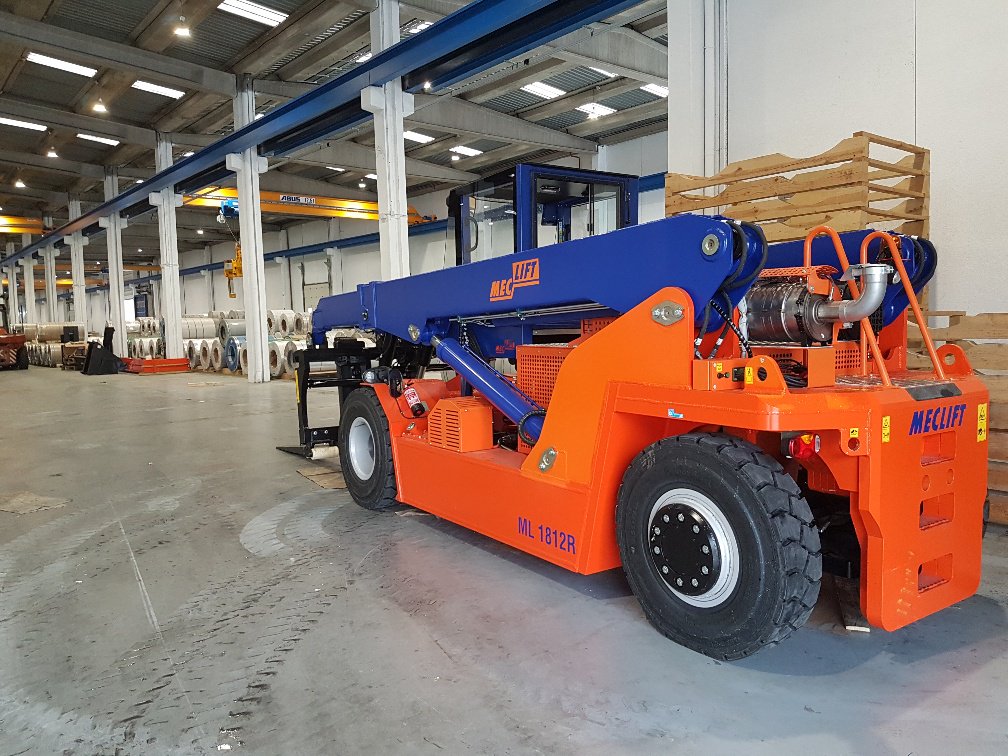

Product Gallery
Specification
| Lifting capacity | 18 000 kg |
|---|---|
| Load centre | 1 200 mm |
| Lifting height | 6 000 mm |
| Reach | 2 500 mm |
| Container handling | Empty 20 ft, stacked 3 high |
| Operates inside a 20 ft container | Yes |
| Length (without attachments) | 5 470 mm |
|---|---|
| Width | 2 160 mm |
| Height (min) | 2 265 mm |
| Wheelbase | 3 950 mm |
| Ground clearance | 150 mm |
| Turning radius | 5 250 mm |
| Weight (without attachments) | 21 300 kg |
| Standard forks (W × H × L) | 200 × 100 × 1 800 mm |
| Engine | Cummins QSB6.7, Stage III / Tier 3 or Stage IV / Tier 4F |
|---|---|
| Rated power (ISO 2534) | 149 kW @ 1 900 rpm |
| Peak torque | 929 Nm @ 1 500 rpm |
| Transmission | ZF WG171 powershift, 3-speed automatic |
| Driving speed | 28 km/h |
| Drive axle | Kessler D81 |
| Service / parking brake | Hydraulic wet disc / spring-applied disc |
| Tyres (front / rear) | 4 × 12.00-20 / 2 × 12.00-20 |
| Cabin | Hydraulically movable, vertical |
|---|
Source: manufacturer datasheets listed above. — = not published by the manufacturer. Specifications may vary by configuration and are subject to change.
