CM36 Container Mover
The smarter way to transport containers in ports, terminals, and industrial sites
Container Mover CM36
If you don’t stack containers or load trains, the Movella CM36 container mover is the best machine!

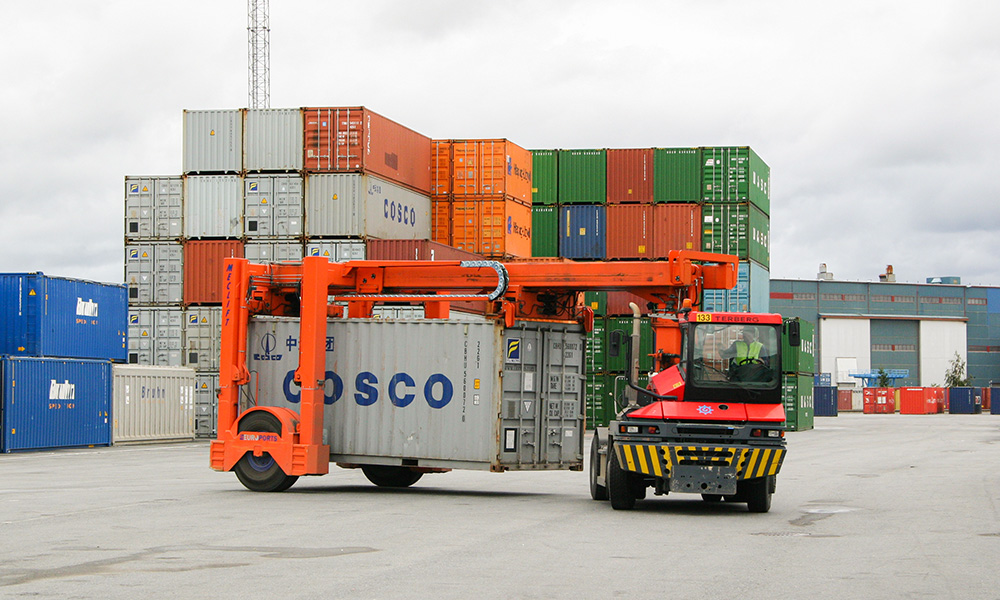

Movella CM36 container mover is a smarter way of transporting all 20–45’ containers in ports, terminals, and industrial sites.
It is especially suitable for applications where containers must be transported through narrow and low doors or when transport distances are longer. Pulled by a terminal tractor, the container mover can pick, transport, and leave containers independently from cranes and other lifting equipment – one machine takes care of all container moves.

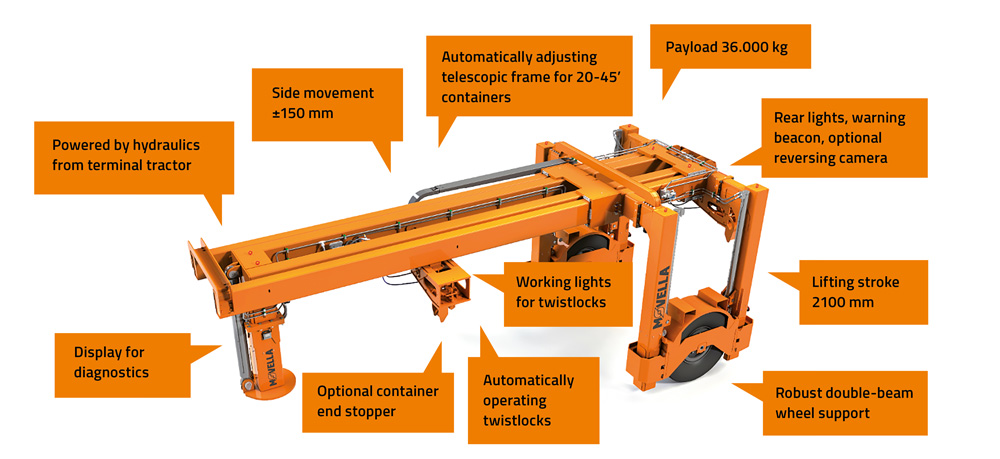

Movella CM36 Container Mover Features
- Transports 20–45’ containers efficiently
- Operates through narrow and low doors
- Independent from cranes and lifting equipment
- Ideal for ports, terminals, and industrial sites

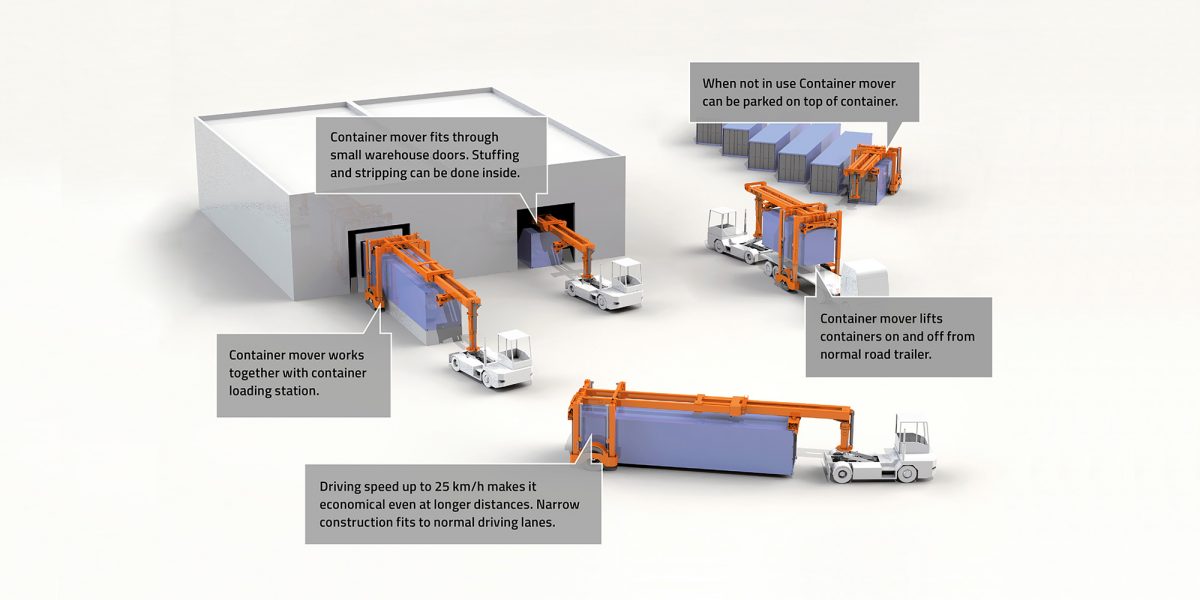

How to Use the Movella CM36
- 1 Align terminal tractor and attach the CM36 container mover.
- 2 Position under the container and secure the locking points.
- 3 Transport safely through narrow doors or longer distances as needed.
- 4 Release the container at destination—no crane required.
Product Comparison
How cm36 container mover compares to other systems
Movella cm36+ Terminal tractor |
ReachStacker |
SpecialStraddle carrier |
Container trailer+ Terminal tractor |
|
|---|---|---|---|---|
| Low investment cost | ||||
| Low operation and maintenance cost | ||||
| Fits through small doors | ||||
| Container transported longitudinally | ||||
| Lifts container from road trailer | ||||
| Lifts container from railway car |
Specification
| Payload | 36 000 kg |
|---|---|
| Container sizes | 20 ft – 45 ft, telescopic frame adjusts automatically |
| Lifting stroke | 2 100 mm |
| Side movement | ±150 mm |
| Towing unit | Standard terminal tractor |
|---|---|
| Power | Hydraulics from the terminal tractor |
| Driving speed | Up to 25 km/h |
| Twistlocks | Automatic |
| Crane or lifting equipment required | No |
| Passes narrow and low doors | Yes |
| Axle lines | 3 |
|---|---|
| Wheel support | Double-beam |
| Lighting | Rear lights, warning beacon, twistlock work lights |
| Options | Reversing camera, container end stopper |
Source: manufacturer datasheets listed above. — = not published by the manufacturer. Specifications may vary by configuration and are subject to change.
